Description
![]()

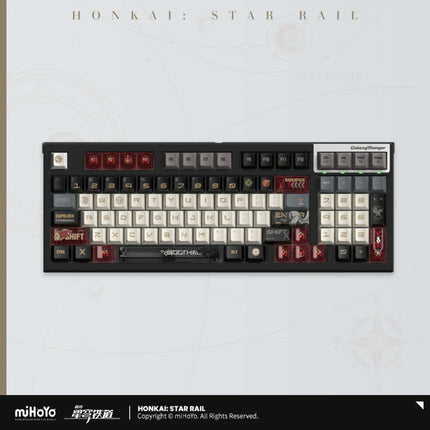

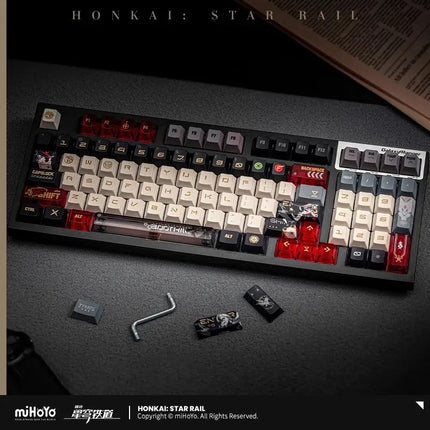

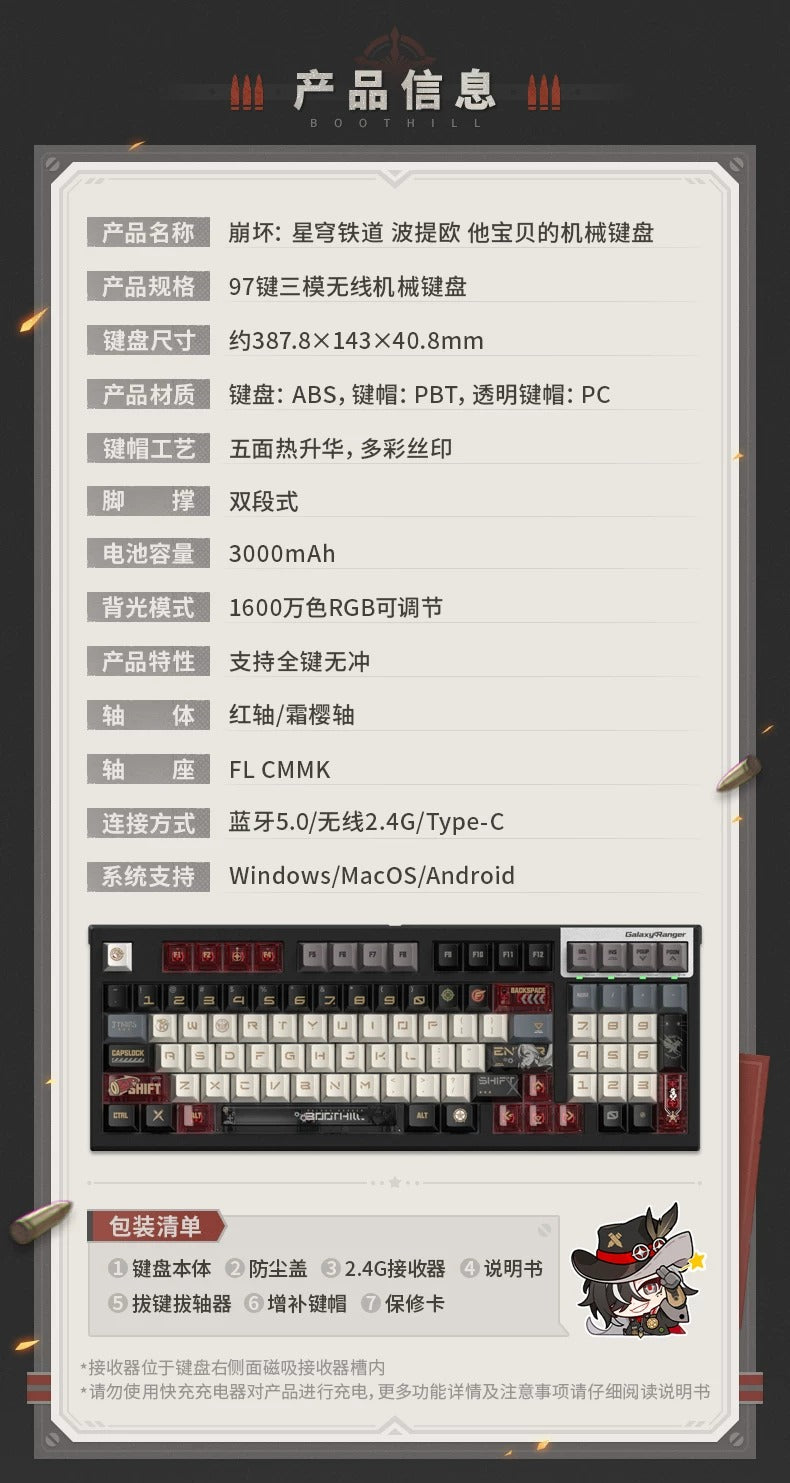

Honkai Star Rail: Boothill Mechanical Keyboard![]()

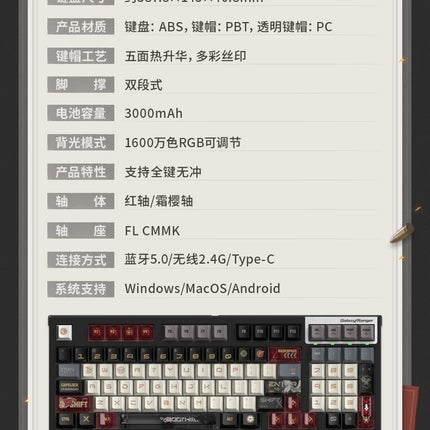

- 97-key tri-mode wireless mechanical keyboard
- Dimensions: A
![]()
pprox. 38.78 x 14.3 x 4.08 cm
- Materials:
- Keyboard: ABS
- Keycaps: PBT
- Transparent Keycaps: PC

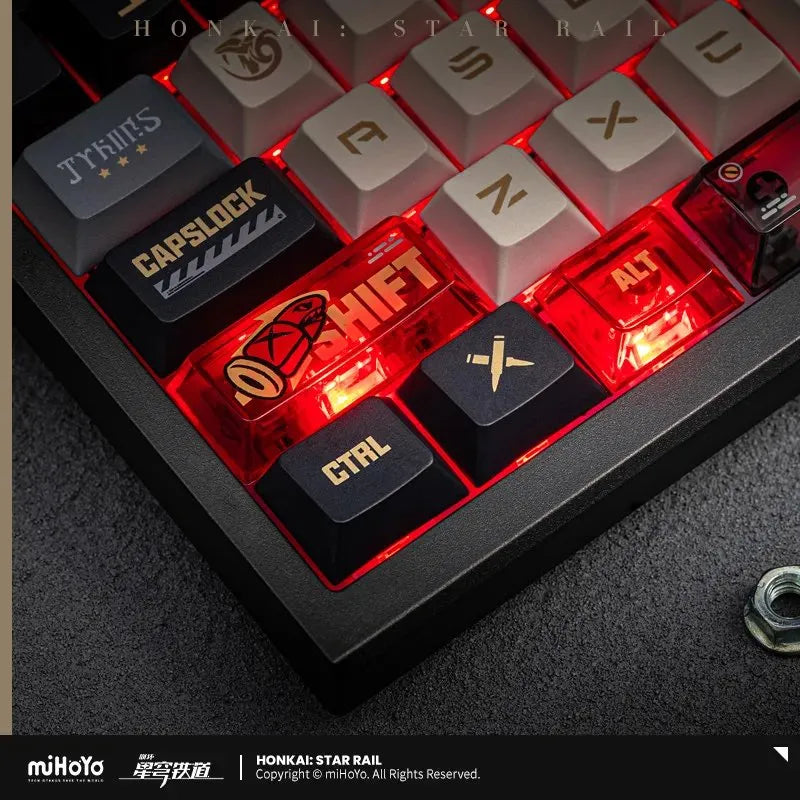

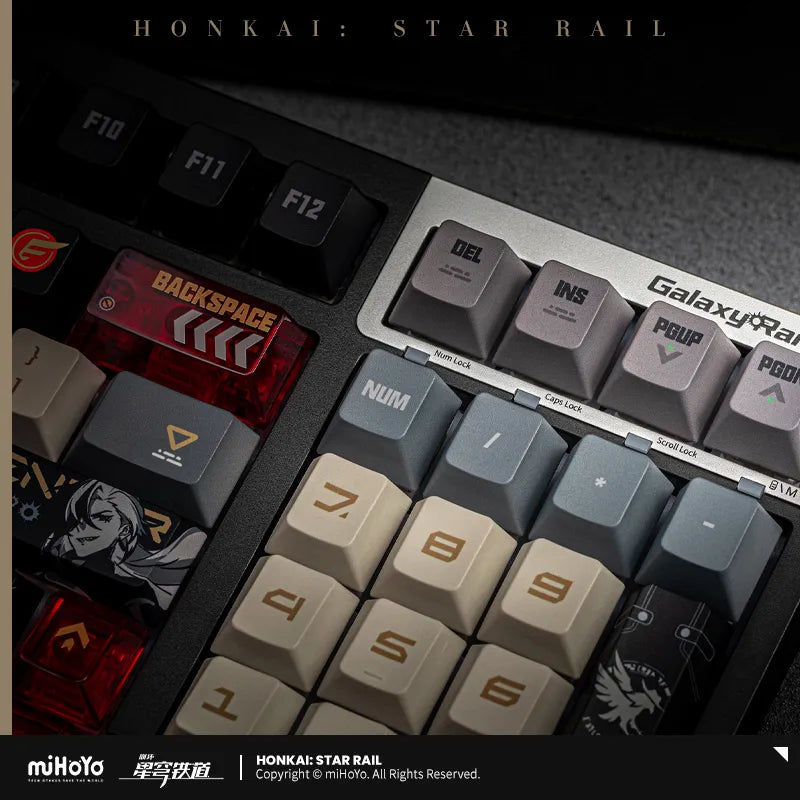

- Keycap Craft: Five-sided thermal sublimation, multicolor silk printing
- Feet: Dual-stage adjustable
- Battery Capacity: 3000mAh
- Backlight Mode: 16 million color RGB adju
![]()
stable

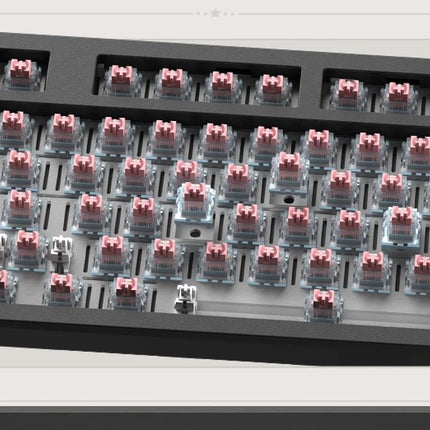

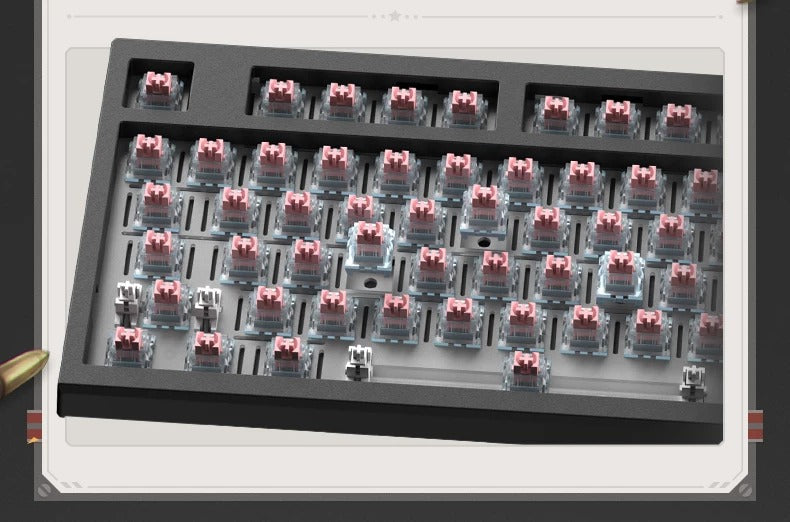

- Full-Key Hot-Swappable Base
- Supports hot-swappable mechanical switches
- Convenient for switch replacement
- Compatible with most switch types on the market
- Enables creation of personalized gear
- Switch Base: FL CMMK
- Connectivity: Bluetooth 5.0 / Wireless 2.4H / Type-C (Instructions for each method are below)
- System Compatibility: Windows / macOS / Android
- Package Contents:
- Keyboard Unit
- Dust Cover
- 2.4G Receiver
- User Manual (In Chinese)
- Keycap and switch puller

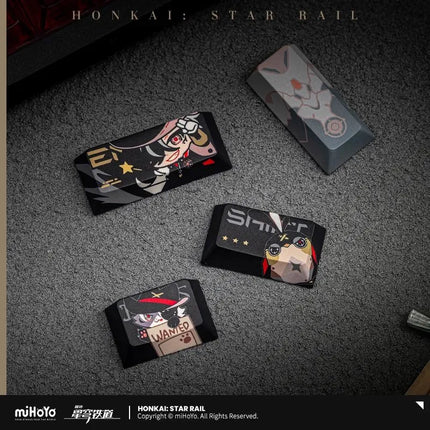

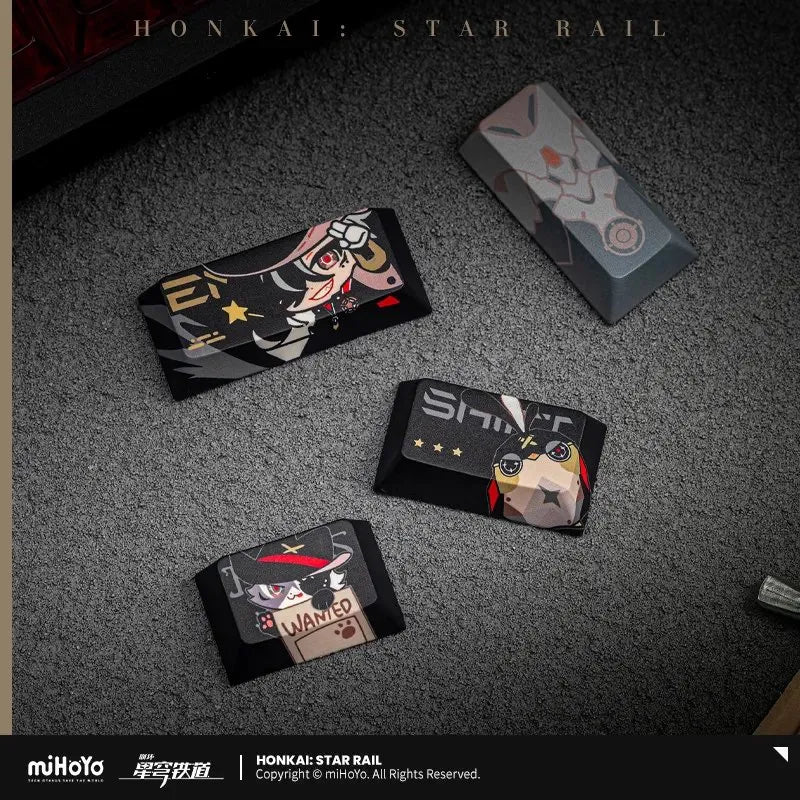

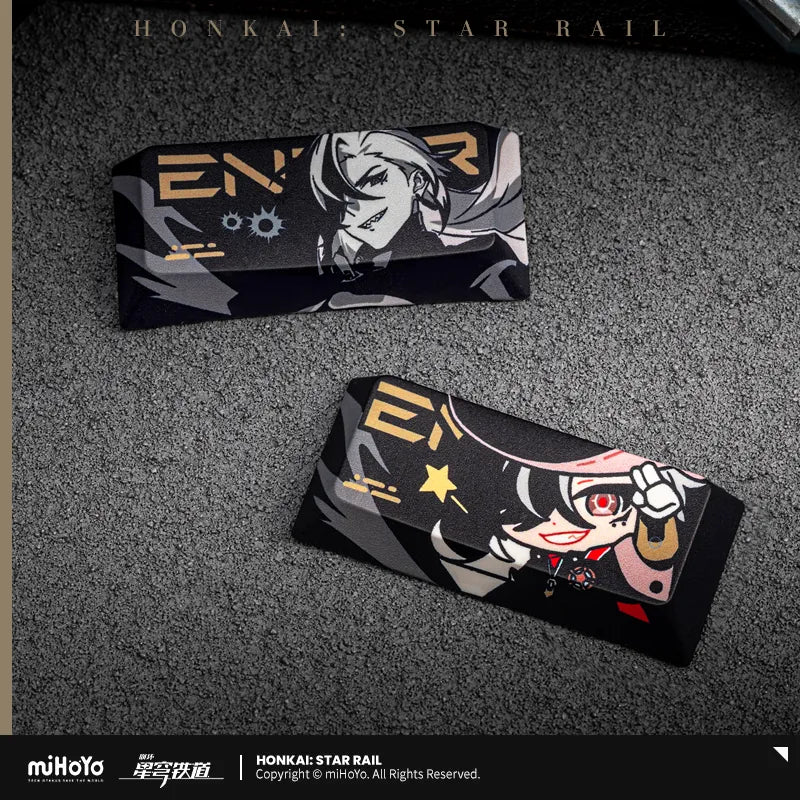

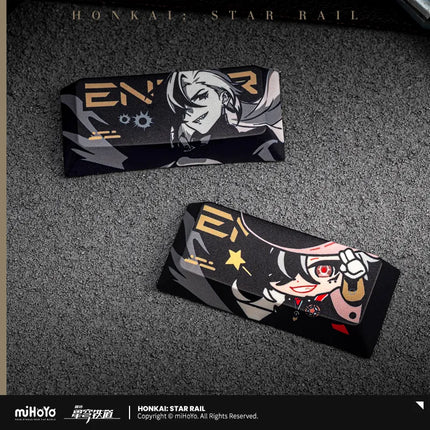

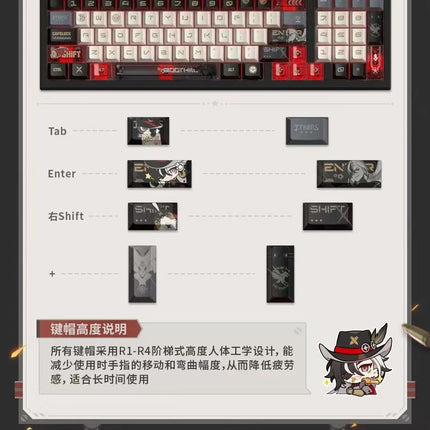

- Supplementary Keycaps

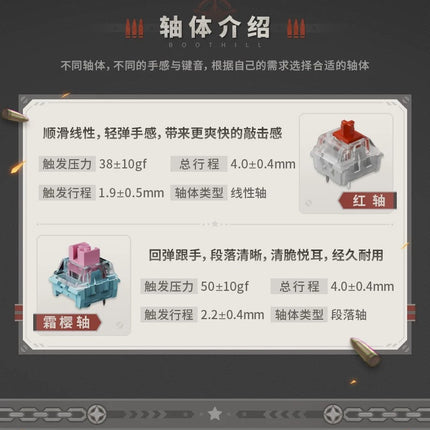

Keyswitches Specifications
- Switch Options:
- Red Switch
- Type: Linear
- Feel: Smooth linear motion, light rebound, crisp keystroke sensation
- Actuation Force: 38 ± 10 gf
- Total Travel Distance: 4.0 ± 0.4 mm
- Actuation Travel Distance : 1.9 ± 0.5 mm
- Frost Sakura Switch
- Type: Tactile
- Feel: Responsive rebound, distinct tactile bump, crisp and pleasant sound, highly durable
- Actuation Force: 50 ± 10 gf
- Total Travel Distance: 4.0 ± 0.4 mm
- Actuation Travel Distance: 2.2 ± 0.4 mm
Connection Methods
2.4G Wireless Connection
- Remove the receiver from the right-side storage slot
- Insert the receiver into the computer's USB port
- Set the bottom mode switch to 2.4G mode
Bluetooth Connection
- Set the bottom mode switch to Bluetooth mode
- Press and hold Fn + number key 1, 2 or 3 to start pairing (the light below the selected number key will flash during pairing)
- Supports pairing with up to 3 devices. Use Fn + number key 1, 2, or 3 to switch between them
Wired Connection
- Insert the USB-C cable into the keyboard port
- Connect the cable to the computer
- Set the bottom mode switch to middle wired connection mode
Lighting Customization Funtions
- Fn + Right Alt : Switch lighting modes
- Fn + Right Shift : Change lighting colors
- Fn + Del : Enter constant lighting mode
- Fn + Up/Down Arrow : Increase/decrease brightness level
- Fn + Left/Right Arrow : Decrease/Increase lighting speed
- Fn + Z/X/C to activate one of three custom backlight profiles (Steps For Set Up Shown Below)
Custom Backlight Editing
- Press Fn + Z/X/C to activate one of three custom backlight profiles
- Press Fn + V to begin editing; all backlights will turn off, indicating edit mode
- Press the desired keys to assign lighting—each press cycles through available colors
- Press Fn + V again to save the edited lighting profile

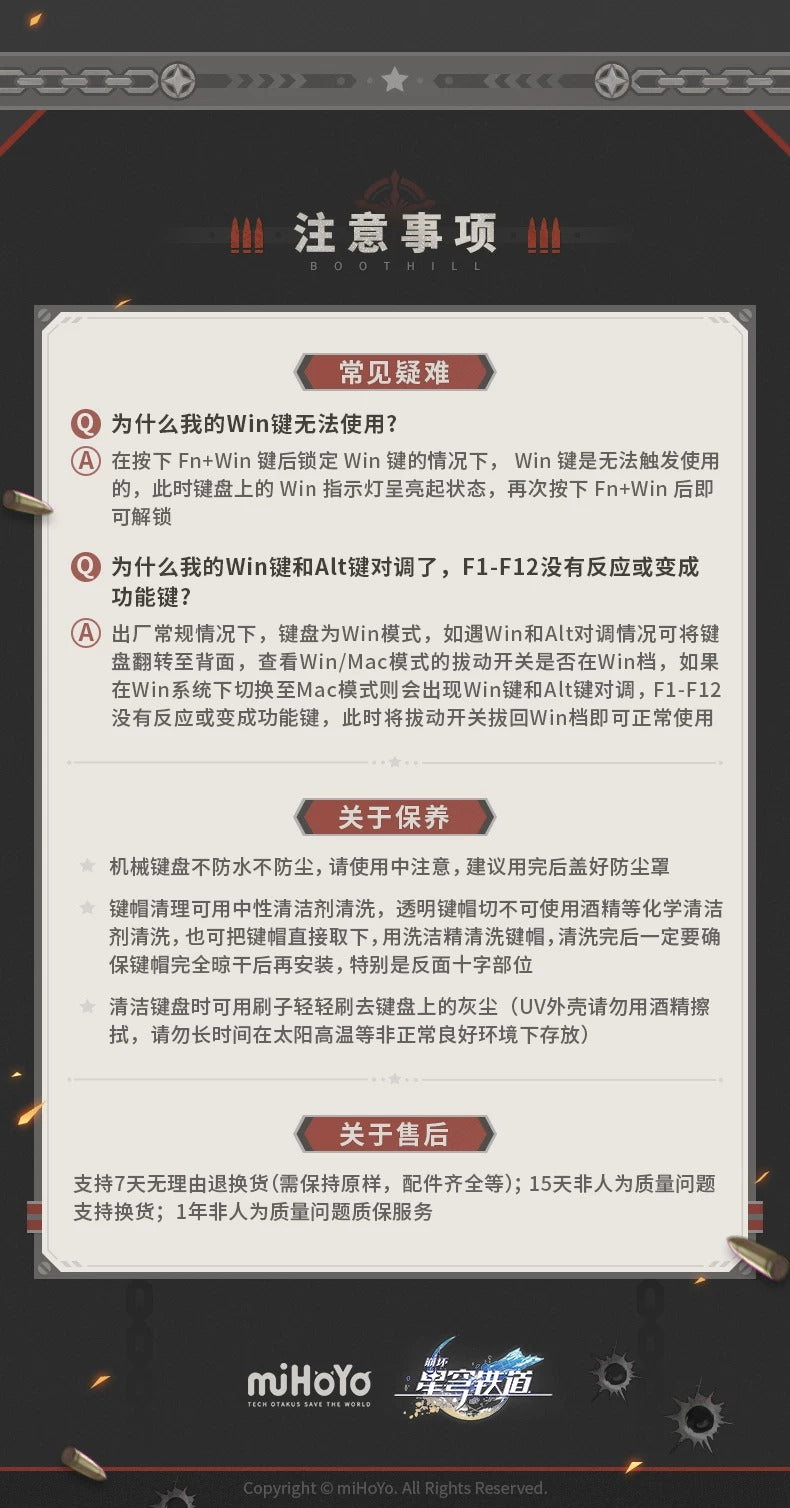

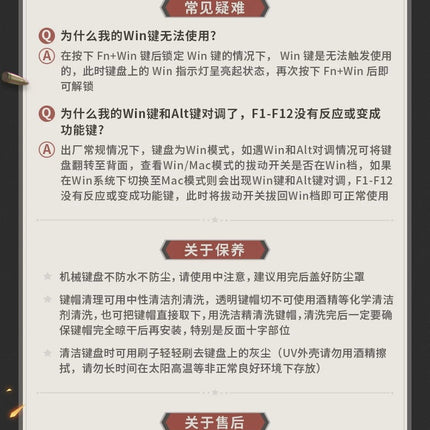

Mechanical keyboards are not waterproof / dustproof. Please take care during use. It is recommened to cover with a dust cover after use.
Keycaps can be cleaned with a neutral detergent. Transparent keycaps must not be cleaned with alcohol or other chemical cleaners. You may also remove the keycaps and wash them with dish soap. After cleaning, ensure keycaps are completely dry before reinstalling—especially the cross-shaped mounting stems.
To clean the keyboard, gently brush off dust with a soft brush. (Do not use alcohol on UV-coated surfaces. Avoid storingin high-temperature or harsh environments such as direct sunlight.
Preorders expected to ship May 2026
Pre-orders/back-orders cannot be cancelled.
